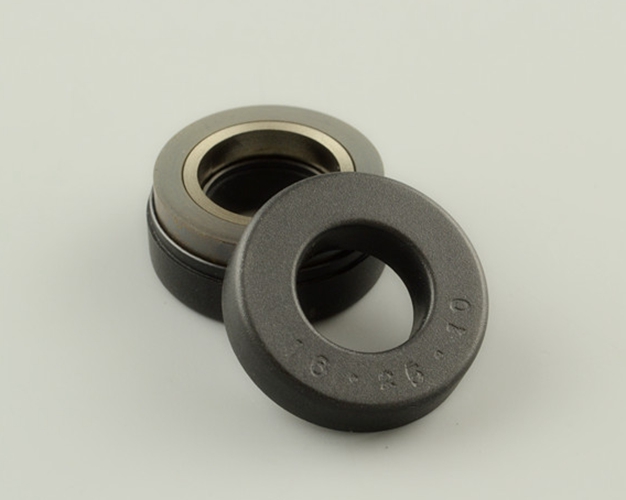

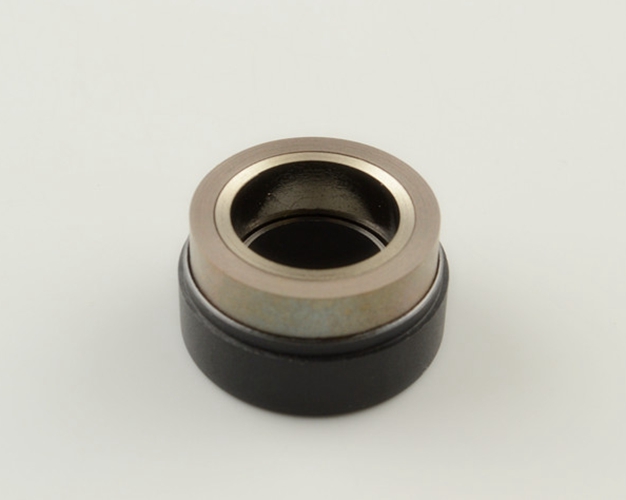

Precision transformer core-Iron core for anti-DC component transformer

views：1019time：2020-05-08 18:47:57

Features

High initial permeability and high accuracy of transformer;

When the current has a DC component, it is not easy to saturate, ensuring the test accuracy of the transformer under certain DC conditions;

High and low temperature working performance is stable, and it can work for a long time at -55℃-130℃.

Material characteristics

納米晶 Nanocrystalline	飽和磁感應強度Bs（T） Saturated magnetic induction	1.2	非晶Amorphous	飽和磁感應強度Bs（T） Saturated magnetic induction	1.56
	矯頑力Hc （A/m）Coercivity	<2		矯頑力Hc （A/m）Coercivity	<15
	居里溫度Tc（℃） Curie temperature	570		居里溫度Tc（℃） Curie temperature	410
	帶材厚度 thickness (mm)	0.025～0.035		帶材厚度 thickness (mm)	0.025～0.035
	工作溫度 working temperature℃	-55～130		工作溫度 working temperature℃	-55～130
	初始磁導率μi Initial permeability	18×104		初始磁導率μi Initial permeability	1000-3000

Specifications

Ring core: OD—outer diameter, ID—inner diameter, HT—height

Fill factor: 0.75

The core is inner and outer

Note: Various specifications of iron cores can be customized according to customer requirements


產(chǎn)品型號 Product number	磁芯尺寸 Core size	護盒尺寸 Case size			過載能力 Overload capacity
	OD×ID×HT	OD	ID	HT	過載能力 Overload capacity
	mm×mm×mm	mm	mm	mm	A
DCTC-K19148	19148	22.8	12	10.4	40
DCTC-K221710	221710	24.5	15.3	12.5	60
DCTC-K23168	23168	24.9	14.1	10.9	60
DCTC-K21148	21148	23.1	12.4	10	60
DCTC-K211510	211510	23.6	12.9	12.4	60
DCTC-K251910	251910	27.5	17.0	12.8	60
DCTC-K211610	211610	23.9	13.6	12.7	60
DCTC-K211610D	211610D	24.9	14	12.2	60
DCTC-K241810	241810	27	16	12.6	80
DCTC-K231712	231712	25.1	14.9	14.4	80
DCTC-K251710	251710	28	15.4	13.1	100
DCTC-K2315.510	2315.510	25.3	13.9	12.7	100
DCTC-K25168	25168	27.6	13.7	10.6	100
DCTC-K251610	251610	27.6	13.8	12.6	100
DCTC-K38278	38278	40.9	25.3	11.1	100
DCTC-K261610	261610	28.3	14.1	12.8	100/120
DCTC-K27198	27198	29.3	16.8	9.7	100/120
DCTC-K30208	30208	32.8	18.1	9.8	100/120
DCTC-K251812	251812	27.8	16.3	14.3	120
DCTC-K322010	322010	34.4	18	12.9	160
DCTC-K332315	332315	35.8	21.1	18	200

Note: The core overload capacity is related to the winding wire diameter and the number of turns. The above data is for reference only, and the actual data is subject to the finished product.

Characteristic curve

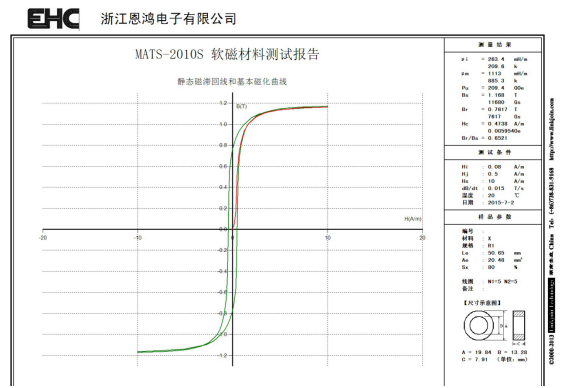

Amorphous static magnetization curve

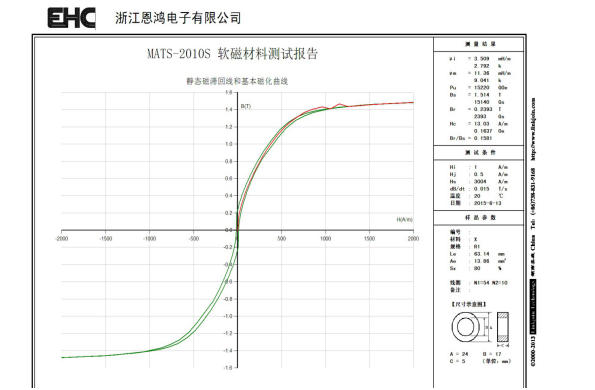

Nanocrystalline static magnetization curve
